MAD BSC 6218 V1.0 200KV Brushless Drone Motor
Regular price
$99.00
Unit price
per
200KV
-
Description
-
Shipping
Description

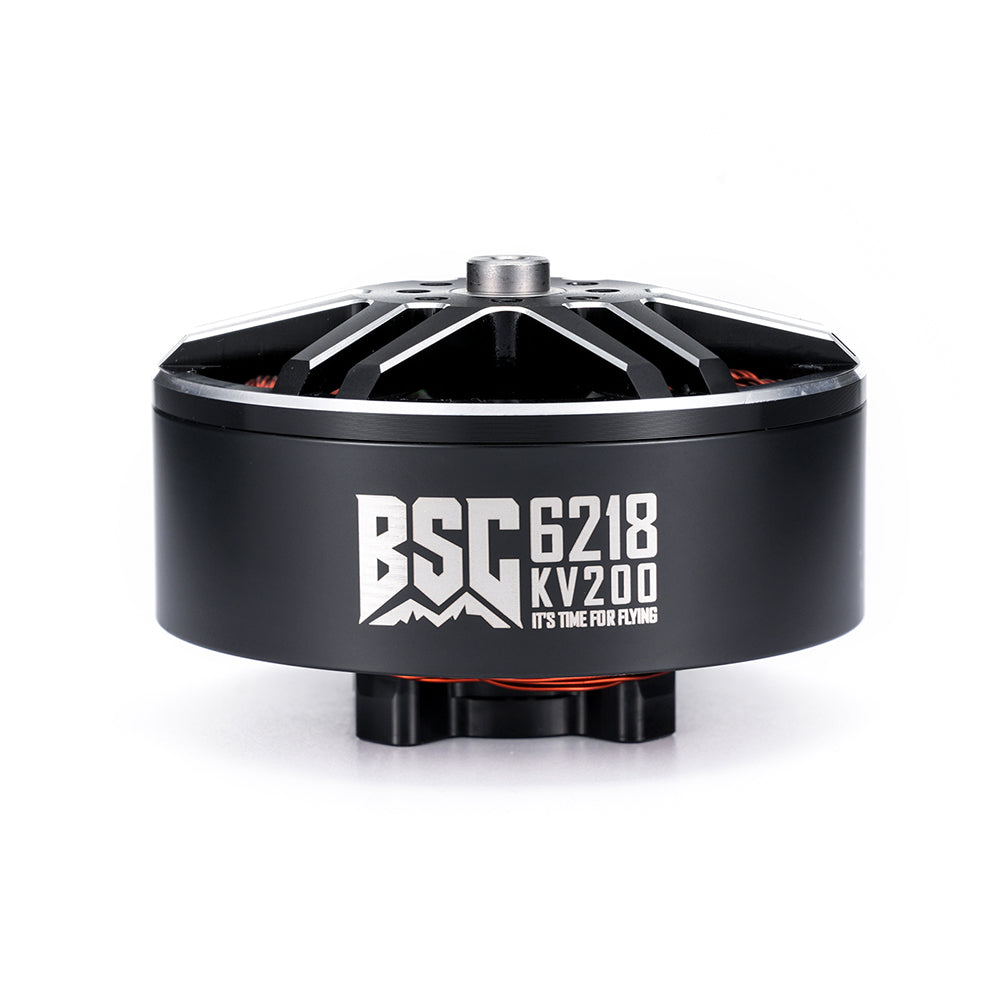

MAD BSC 6218 V1.0 200KV — Cost-Effective Industrial-Grade Power
One motor, multiple mission platforms: light-lift endurance, medium-lift surveillance and heavy-lift transport. The BSC 6218 V1.0 is a 24N28P outrunner built for 18–24 inch long-range FPV and multirotor platforms running on 12S, delivering up to 14,526 g of thrust per axis at 4,202 W.
Highlights
- 14.5 kg max thrust per axis at 100% throttle with a 24×7.2×2 propeller on 12S
- 2- to 4-blade propeller compatibility across 19–24 inch propellers

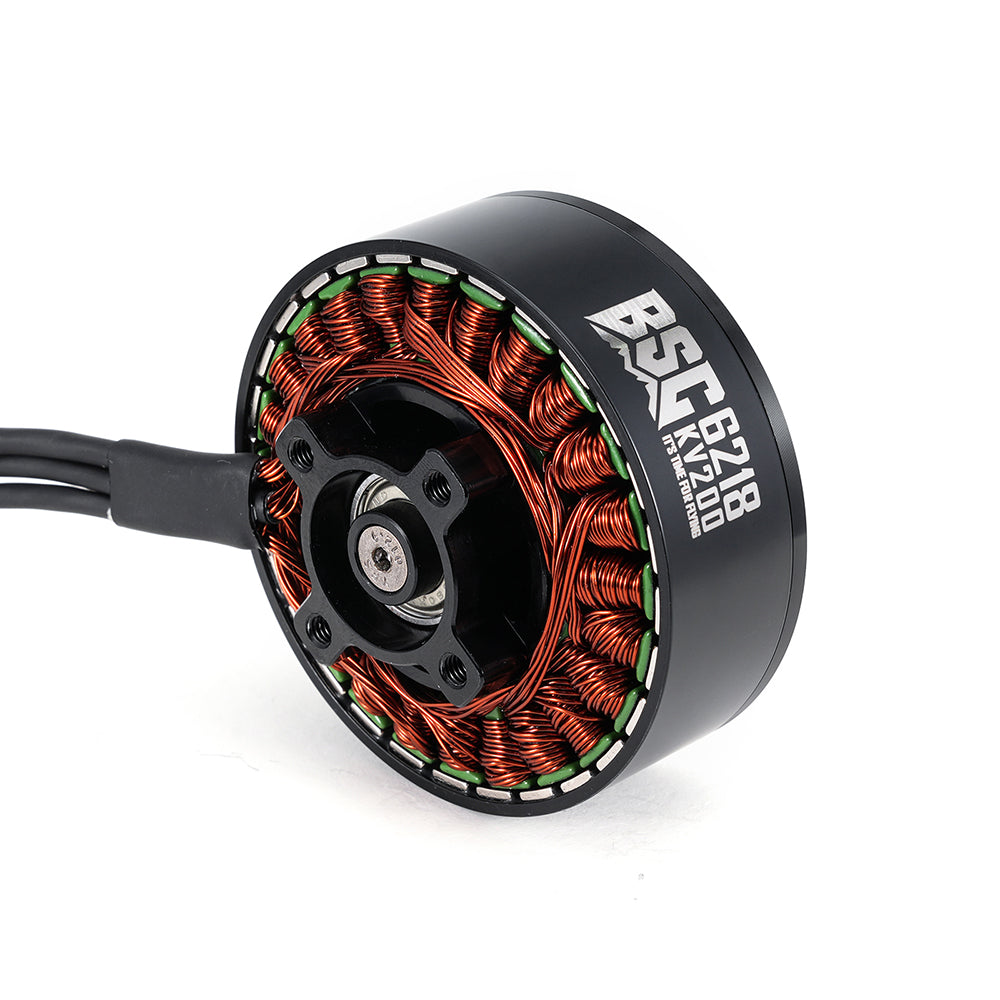

- High slot fill copper windings and curved magnets: lower internal resistance, less heat, smoother thrust delivery

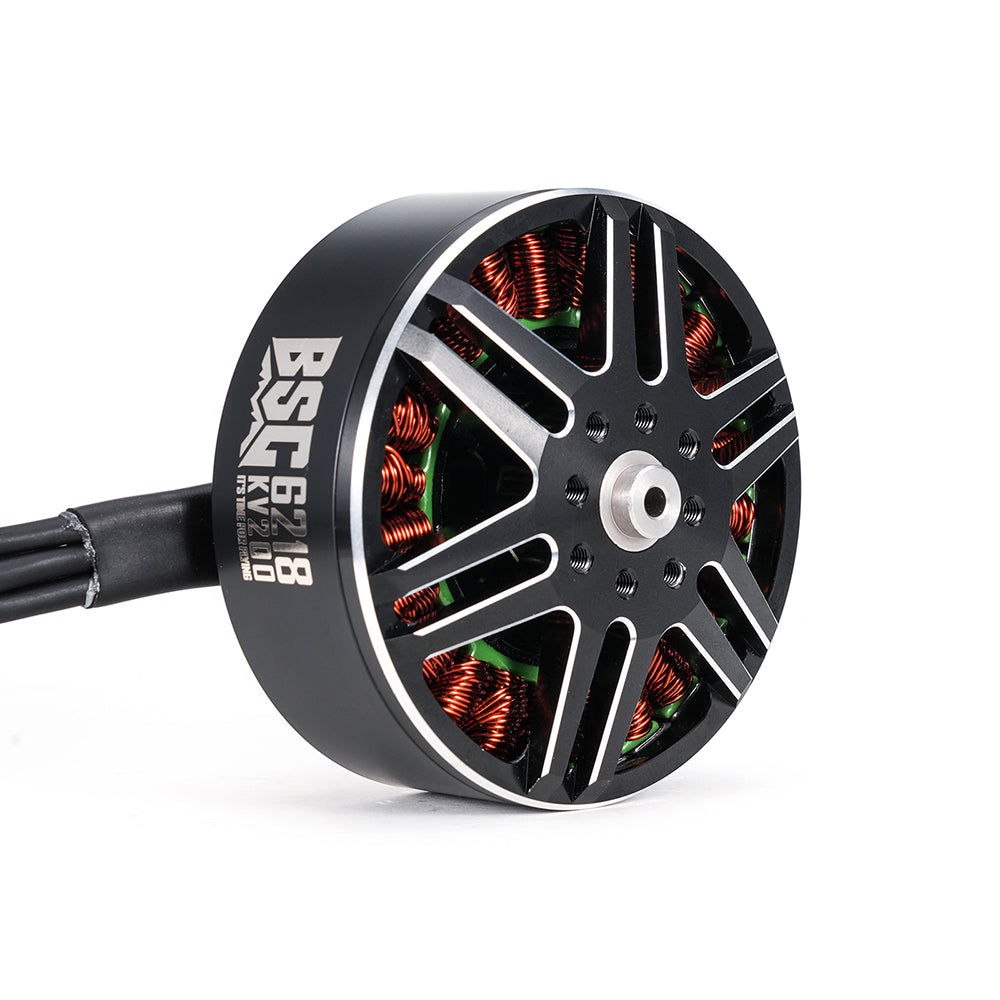

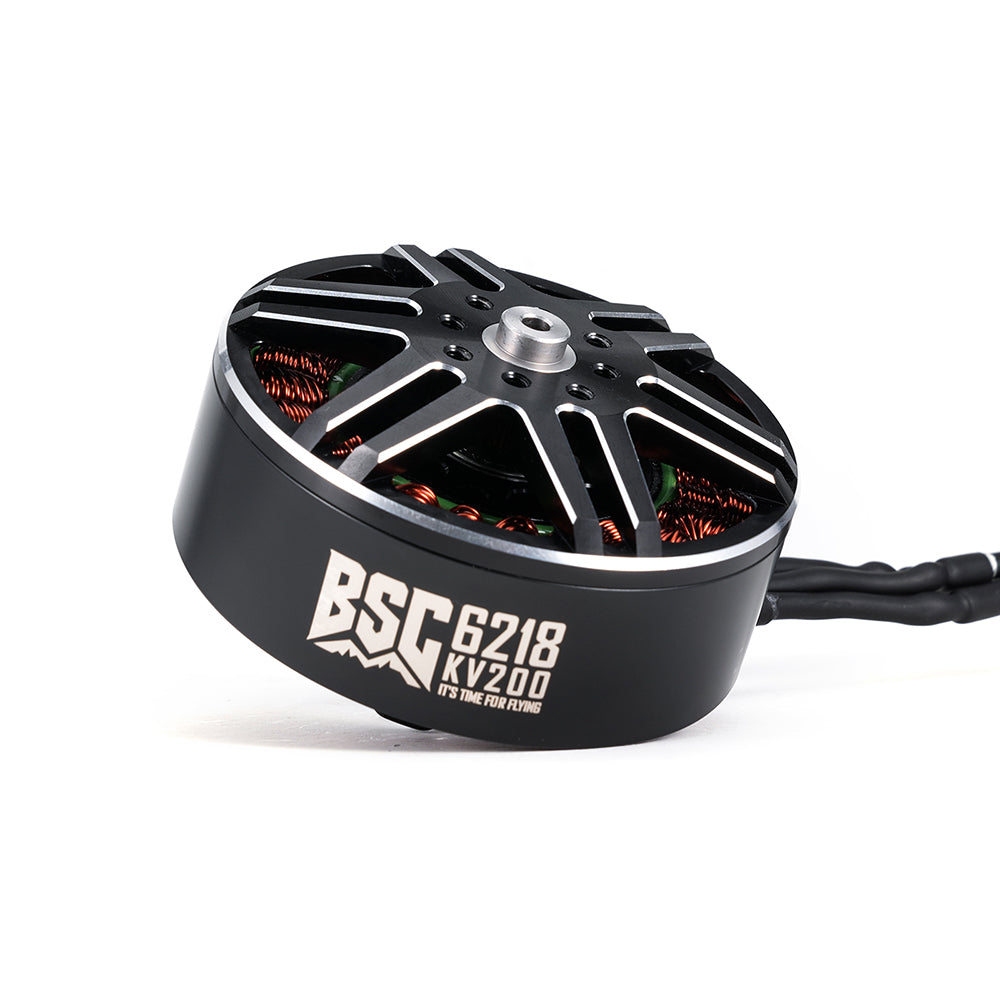

- 24N28P stator, 37.5 mΩ line resistance, 8 mm shaft, 600 mm 14 AWG silicone leads
- Rotor dynamically balanced to ≤5 mg
Specifications
| Motor model | BSC 6218 V1.0 | Stator | 24N28P |
| Motor size | D:69.7 × 44 mm | Rotor balance | ≤5 mg |
| KV | 200 KV | Line resistance | 37.5 mΩ |
| No-load current | 1.45 A / 20 V | Rated voltage | 48 V DC (12S) |
| Max current | 90.5 A | Max power | 4202 W |
| Max thrust | 14,526 g | Weight (incl. leads) | 365 g |
| Propeller mounting holes | D:20 M3×4, D:18 M3×4 | Motor mounting holes | D:30 M4×4 |
| Shaft diameter | 8 mm (IN) | Cable | 600 mm, 14 AWG silicone |
| Package weight | 430 g | Recommended platforms | 18–24 in long-range FPV |
Performance at 100% throttle
| Propeller | Voltage (V) | Current (A) | Input power (W) | RPM | Thrust (g) | Efficiency (gf/W) |
| 24×7.2×2 | 46.42 | 90.5 | 4201.8 | 6710 | 14526 | 3.5 |
| 20×10×3 | 46.83 | 79.5 | 3723.2 | 7058 | 12780 | 3.4 |
| 19×6×4 | 46.84 | 74.4 | 3484.1 | 7181 | 12460 | 3.6 |
Throttle curve with 24×7.2×2 propeller (12S)
| Throttle | Voltage (V) | Current (A) | Input power (W) | RPM | Thrust (g) | Efficiency (gf/W) |
| 50% | 48.13 | 14.9 | 718.8 | 4036 | 5048 | 7.0 |
| 75% | 47.52 | 41.5 | 1973.0 | 5564 | 9806 | 5.0 |
| 100% | 46.42 | 90.5 | 4201.8 | 6710 | 14526 | 3.5 |
2- to 4-Blade Compatibility
- 2-blade, 19–24 in: optimized for endurance and efficient cruise, higher aero efficiency
- 3-blade, 18–20 in: all-round balance and structural rigidity between efficiency and flight stability
- 4-blade, 19–22 in: quiet operation for heavy payloads or extreme thrust demands, 6% noise reduction

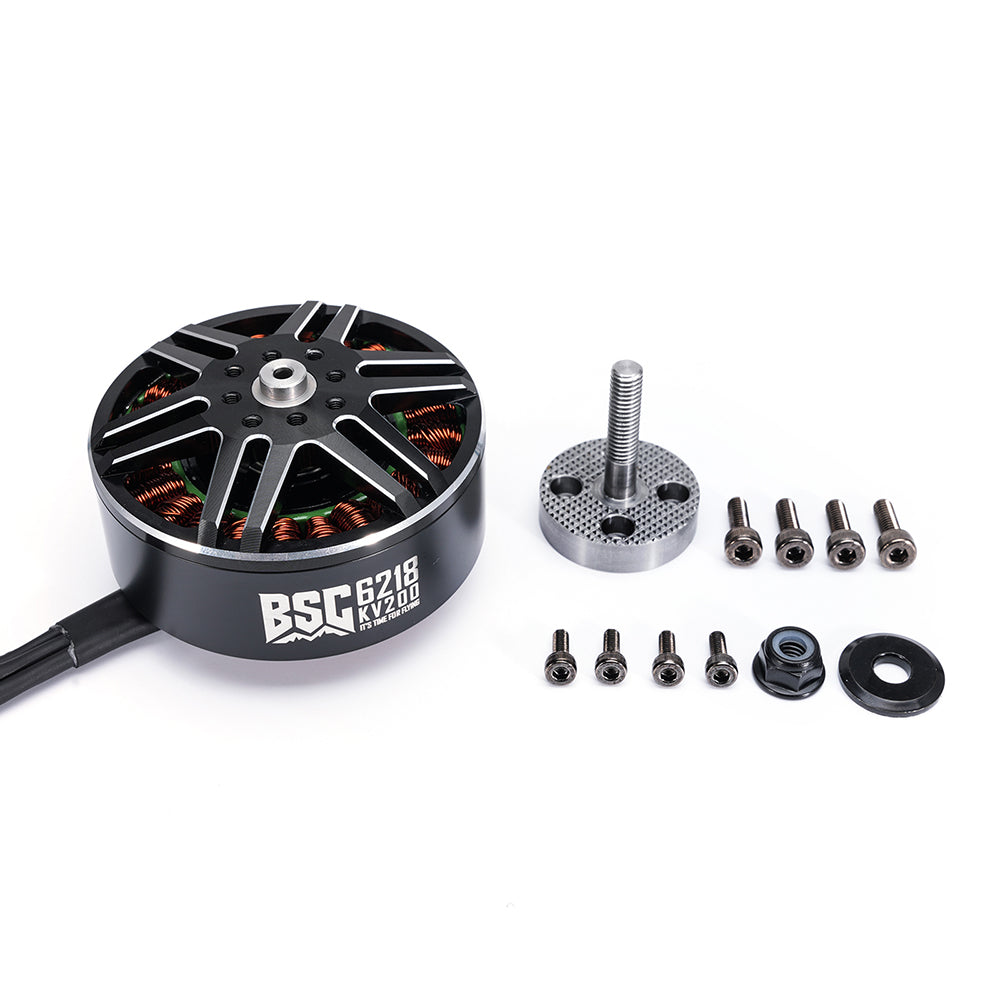

In the box
- 1 × BSC 6218 V1.0 200KV motor
- M6 propeller mount adapter
- M3×8 socket head cap screws ×4
- M4×12 socket head cap screws ×4
- propeller plate ×1
- propeller plate ×1
- M6 nut
- Mating ring ×1
