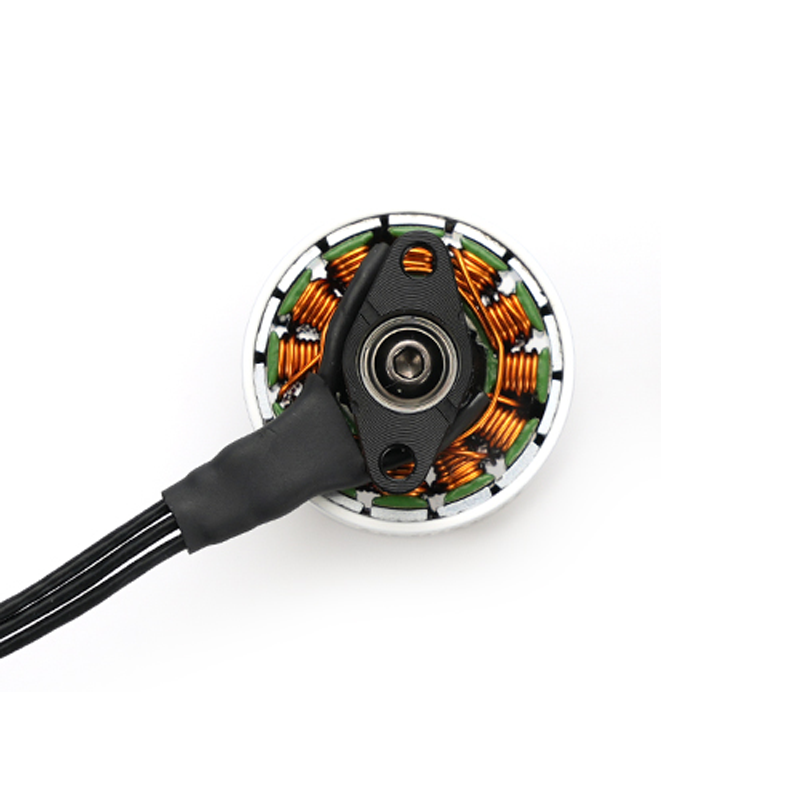

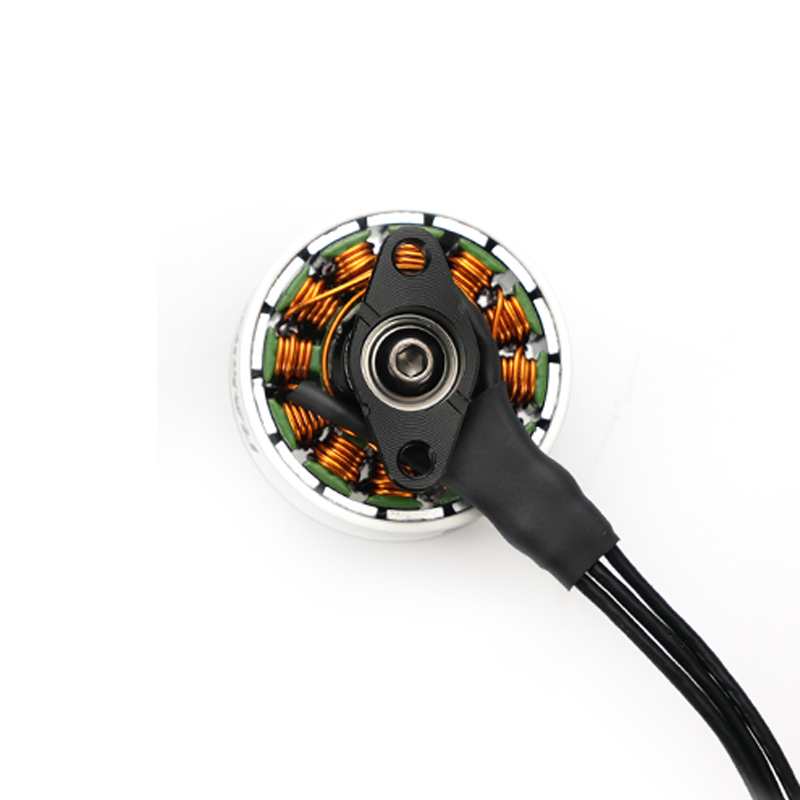

MAD Motor KONKER 2267 2150KV — Built for 6S Freestyle FPV

The KONKER 2267 2150KV is MAD Motor's high-performance brushless motor engineered for 6S freestyle FPV drones. Delivering 2200g (2.2 kgf) of maximum thrust at just 26g of motor weight, it offers an exceptional power-to-weight ratio for aggressive freestyle flight, power loops, and high-speed cruising.

Key Features

• Optimized for 6S (22.2V) LiPo builds — maximum performance on high-voltage setups
• 2200g (2.2 kgf) Max Thrust — tested with 5.1×3.6 inch propellers
• Ultra-Lightweight at 26g — more thrust, less deadweight
• 240°C Copper Winding — handles sustained high-load flight without failure
• 180°C Magnet Temperature Resistance — anti-demagnetization under continuous stress
• Precision CNC Machined Bell — low vibration for smooth HD footage and flight feel

Specifications

Best For

• 6-inch Freestyle FPV: Explosive power for flips, rolls, and power loops
• Long-Range FPV Builds: 2150KV keeps efficiency high on extended 6S flights
• Cinematic FPV: Low vibration output ideal for HD camera mounts

Frequently Asked Questions

Q: What propeller is recommended for the Konker 2267 2150KV?
A: We recommend 5.1×3.6 inch (5136) propellers for optimal thrust and efficiency on 6S builds. Max thrust of 2200g (2.2 kgf) is tested with this propeller.

Q: Is the Konker 2267 2150KV compatible with 4S batteries?
A: This motor is optimized for 6S (22.2V) setups. For 4S builds, we recommend choosing a higher KV variant from the Konker series.

Q: What is the motor weight?
A: The Konker 2267 weighs 26g without cable — one of the lightest options in its class for a 6S 2267 motor.

Q: What frame size is the Konker 2267 designed for?
A: It is designed for 6-inch freestyle frames (250–280mm wheelbase). Please verify the mounting pattern matches your frame before ordering.

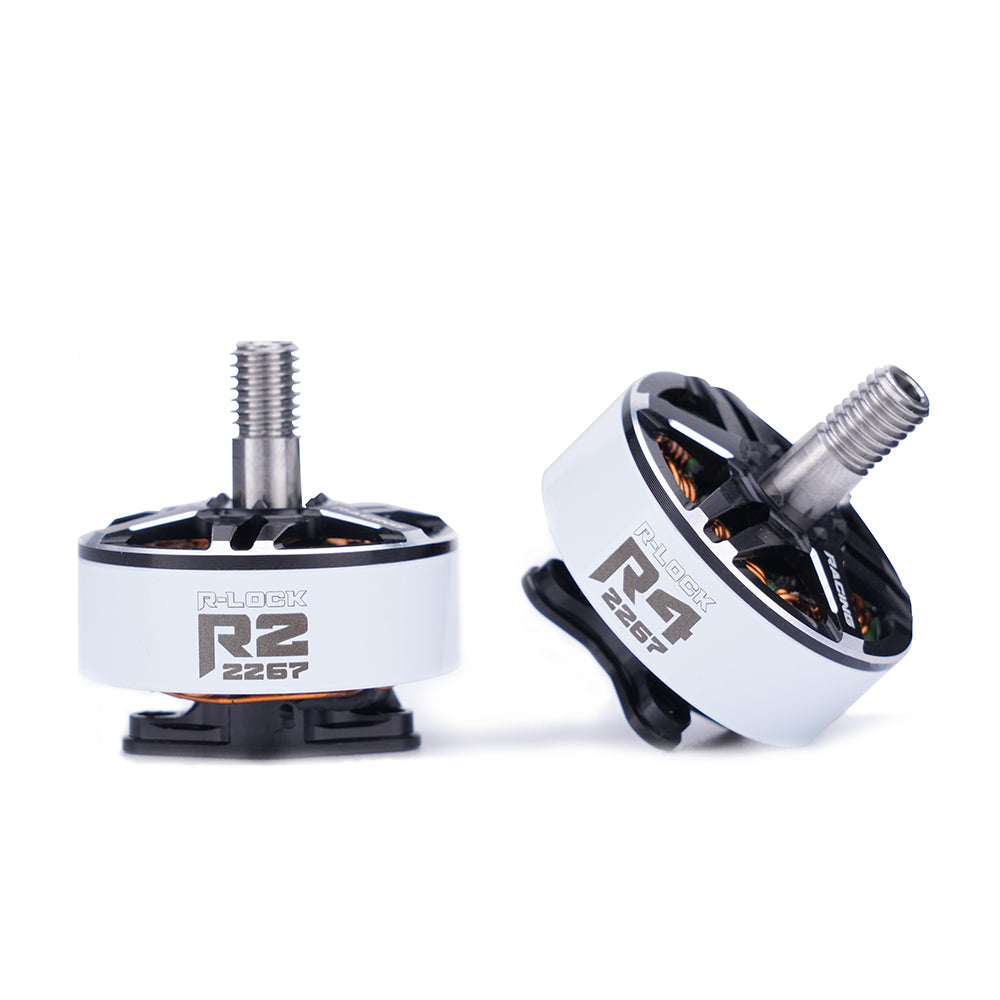

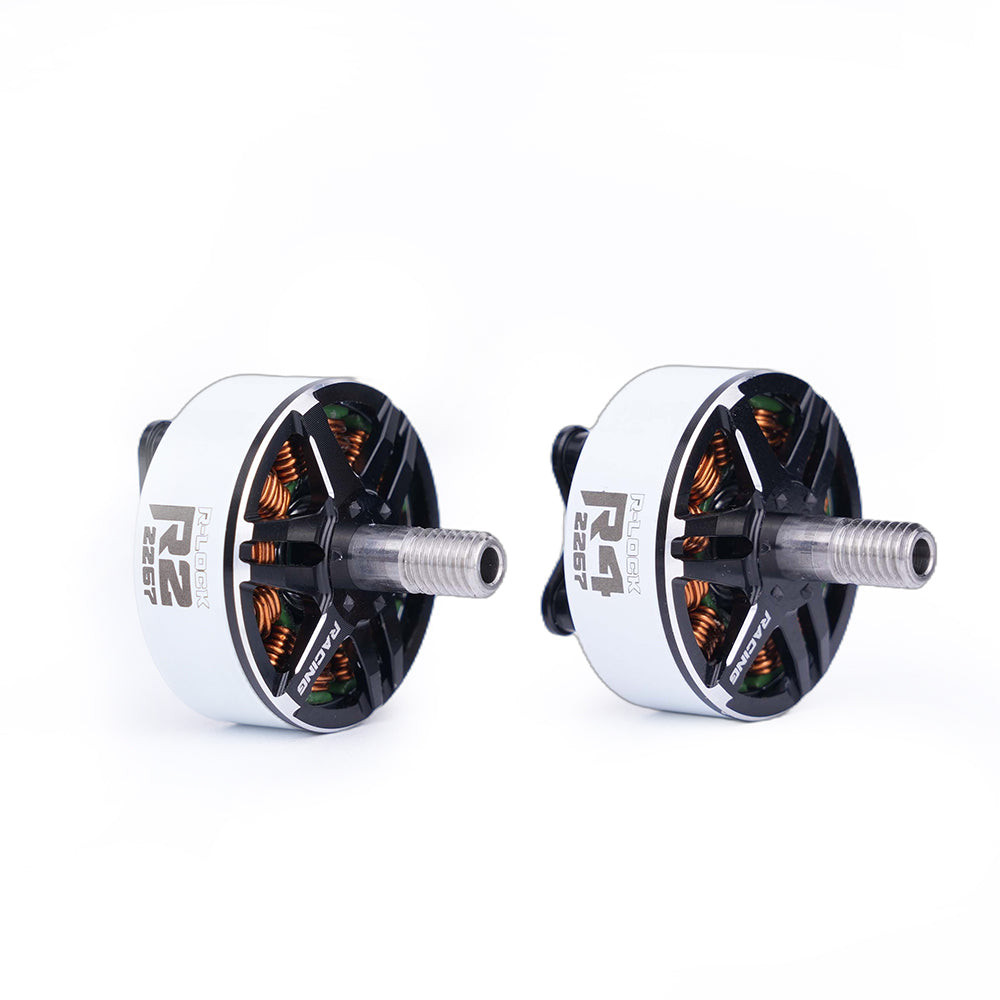

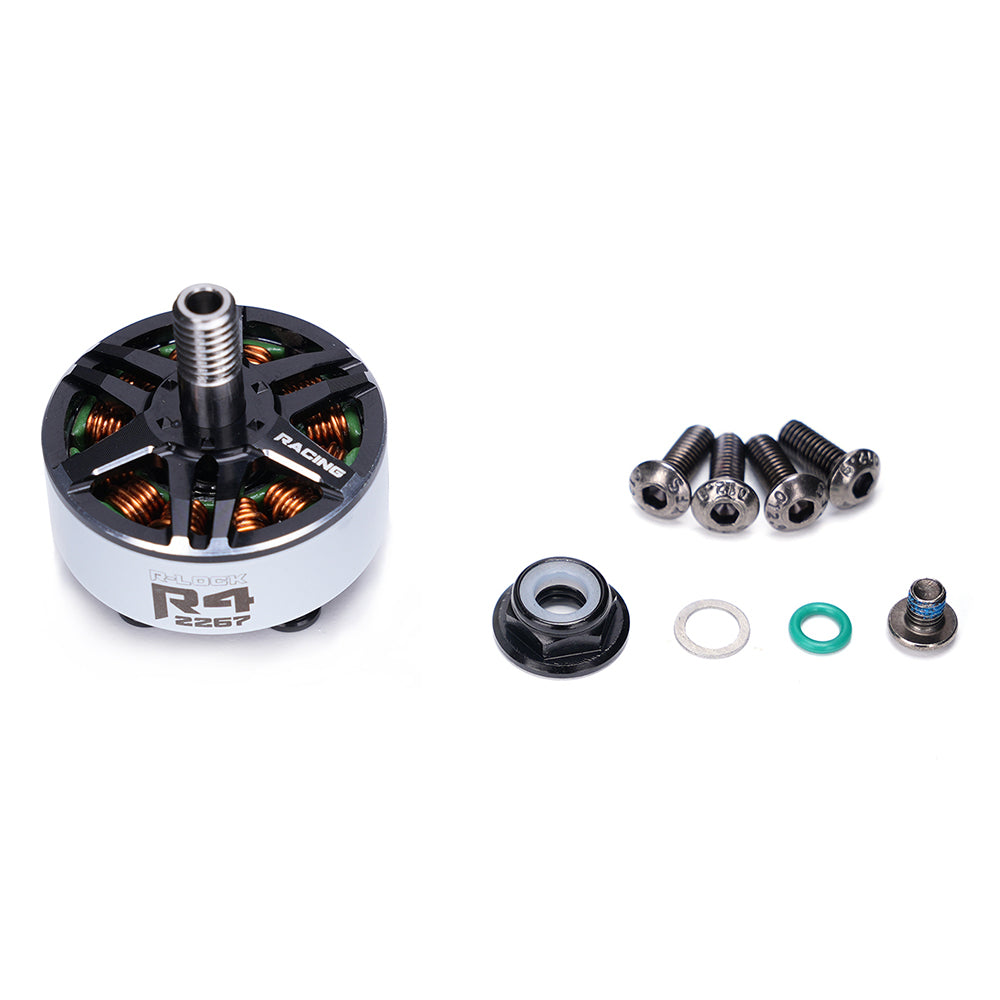

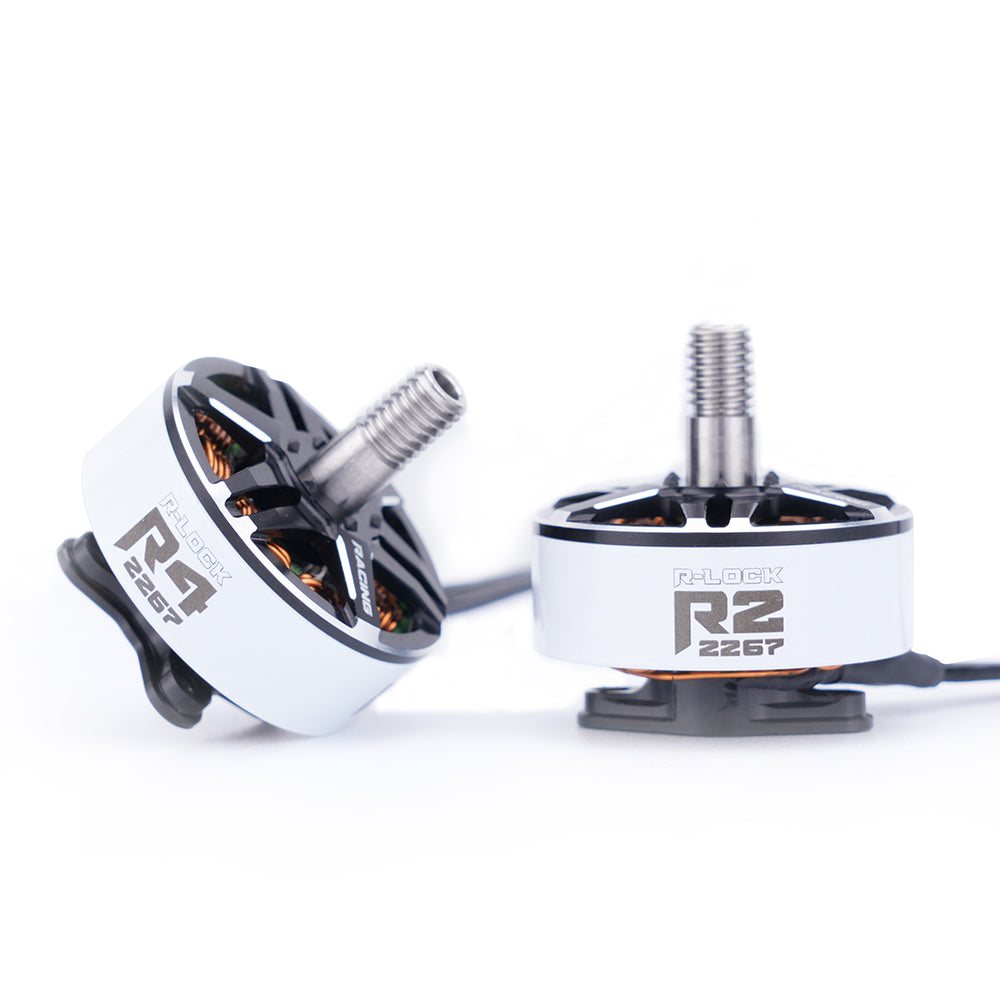

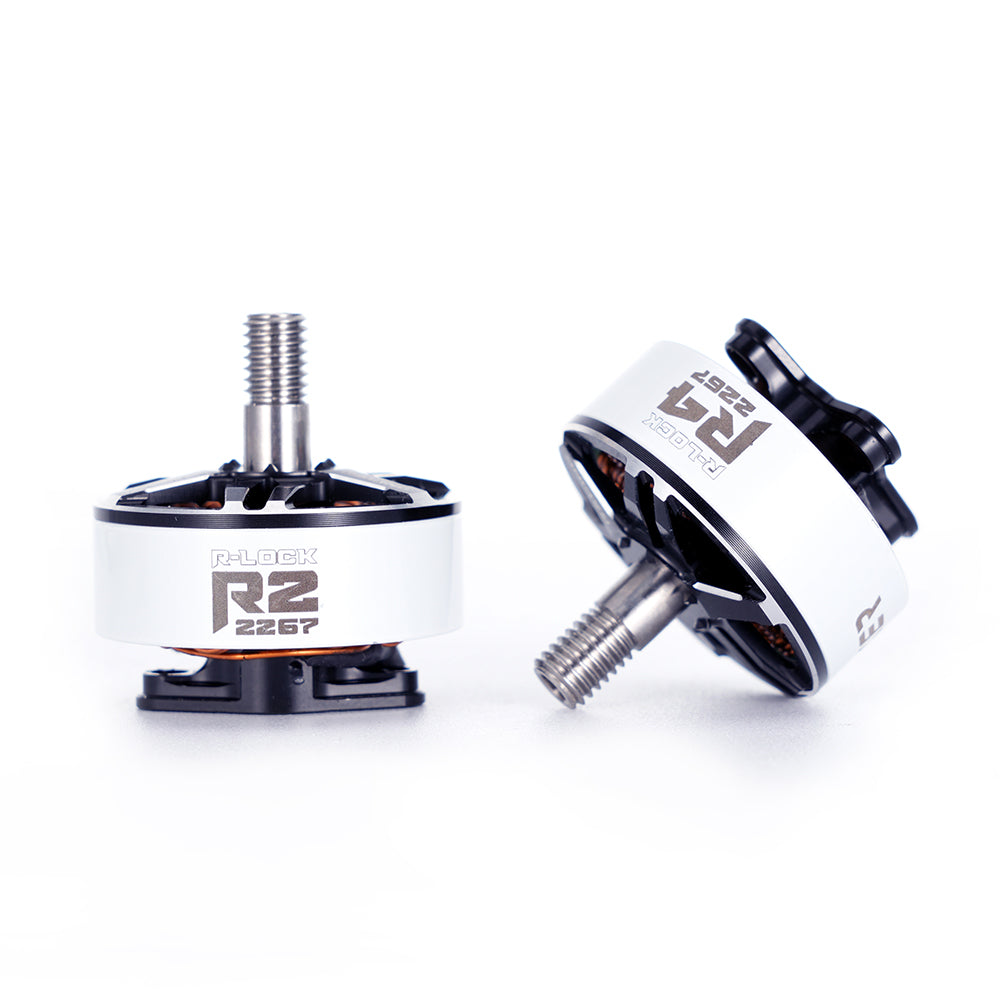

Q: How does the Konker 2267 compare to the MAD Motor R-LOCK 2267?
A: Both share the 2267 stator size, but differ in KV tuning and application focus. The Konker 2267 targets freestyle and long-range 6S builds, while the R-LOCK 2267 is tuned for competitive racing. Contact us for a detailed comparison.
